Tunnel paint shop for automatic varnishing of rubber profiles

WHAT HAVE WE WORKED FOR?

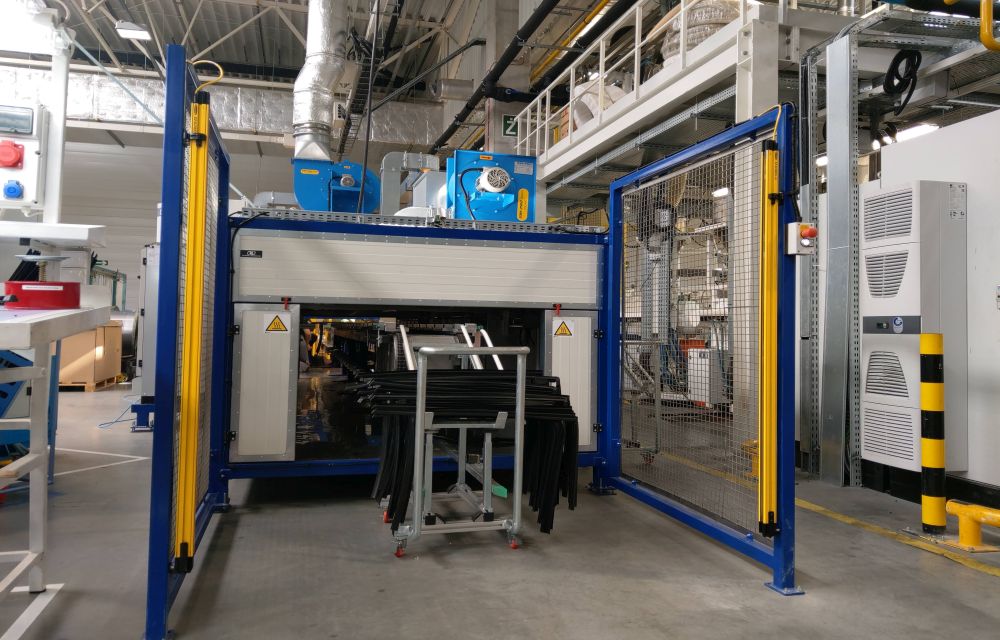

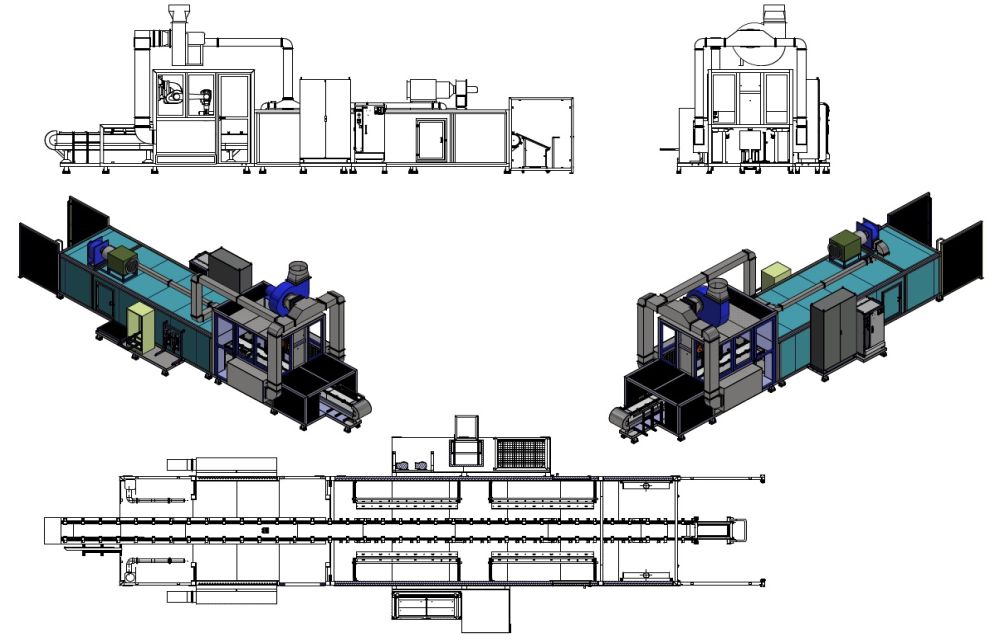

Tunnel paint shop for painting gaskets. The paint shop was made in a compact, modular form, mounted on a common frame. The maximum efficiency of the offered paint shop is about 20 seconds / detail.

The paint shop consists of the following elements:

  • Transport conveyor,
  • Loading station,
  • Details recognition system,
  • Pre-heating zone,

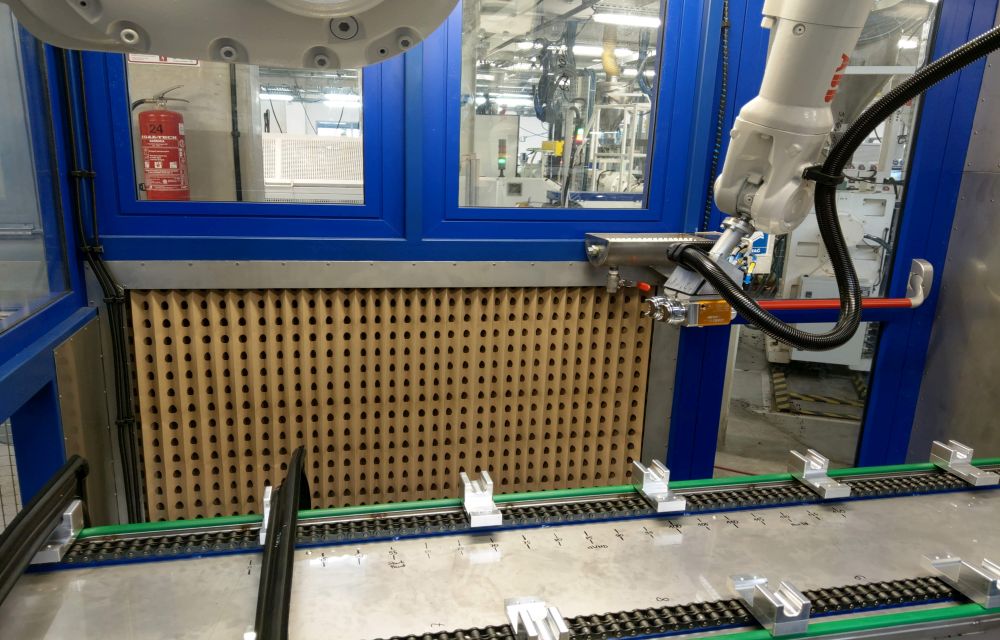

  • A spray booth with a filtering and extraction wall,
  • Paint robot,
  • Extraction,
  • Tunnel dryer,
  • Details cooling tunnel,
  • Unloading station,

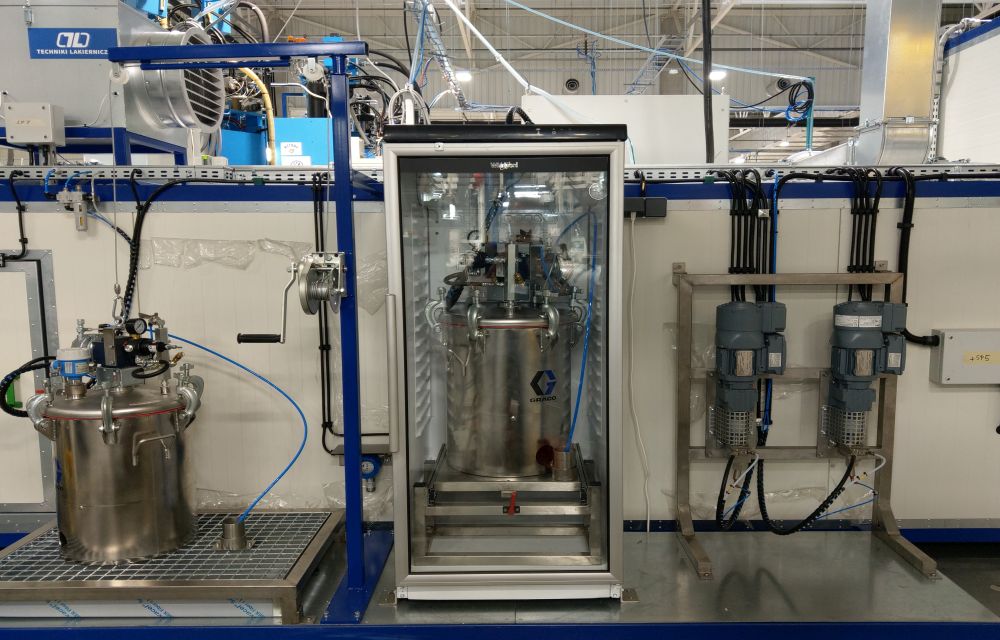

  • The system of feeding and spraying varnish and primer,

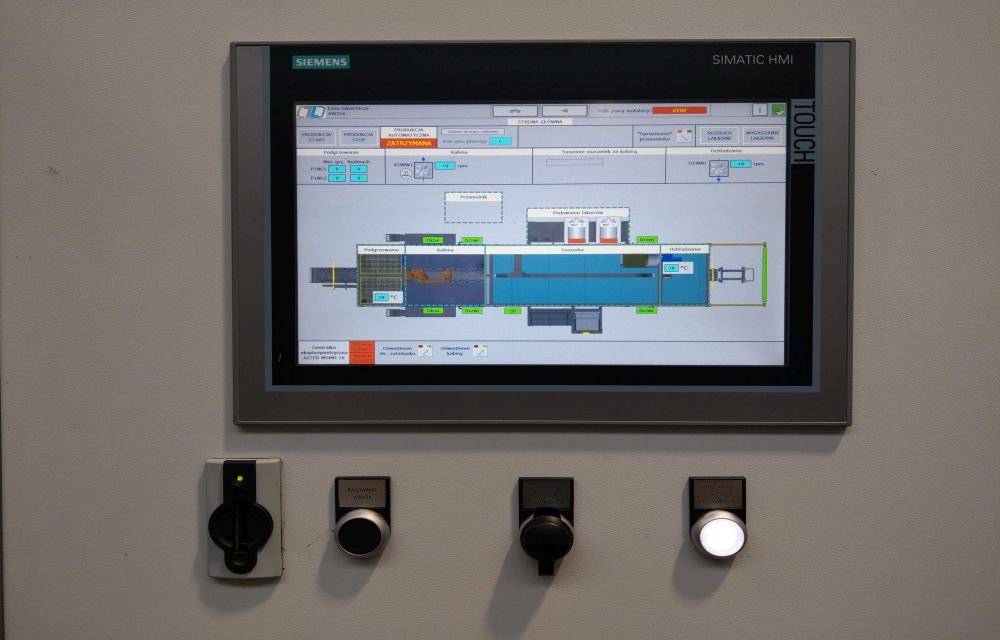

  • A control cabinet with an operator panel.
